MBKT Kit – From Dia 06 - 135mm

Precise boring from Dia 6mm to 135 with 2 Microns adjustment on Dia.

All Boring bars, Cartridges & Extension bars thoughtfully arranged for easy selection. Balanced by design for good finish and to improve accuracy

Minimum number of Insert sizes WC02 , TP09 and TP11 for the whole range from Dia 6 to 135 mm.

Specification

ITEM	RANGE	ORDER CODE	WEIGHT	PART DETAILS
MBK1084	10 – 84	MBK010084	2.5	3 – 14
MBK10105	10 – 105	MBK010105	2.7	3 – 16
MBK10135	10 – 135	MBK010135	2.9	3 – 17
MBK0684	6 – 84	MBK006084	2.6	1 – 14
MBK06105	6 – 105	MBK006105	2.7	1 – 16
MBK06135	6 – 135	MBK006135	3	1 – 17

NOTE : Through Coolant is Optional

Part List

WFB 6.21
WFB 8.28
FBH 0680
WFB 10.35
WFB 12.42
WFB 16.55
WFB 22.66
EB 25.53 + M5 Screw
FC 2836
FC 3654
WFC 03
WBRF 54-84
T6,T8 TORX KEY
3.0MM ALLEN KEY
WC/W (COUNTER WT.)
WBRF 68-100
WBRF 100-135
TCB 0680(thru coolant bush)
Supply with thru coolant kit only

NOTE : Adaptor is not included in the Kit
Through coolant is optional

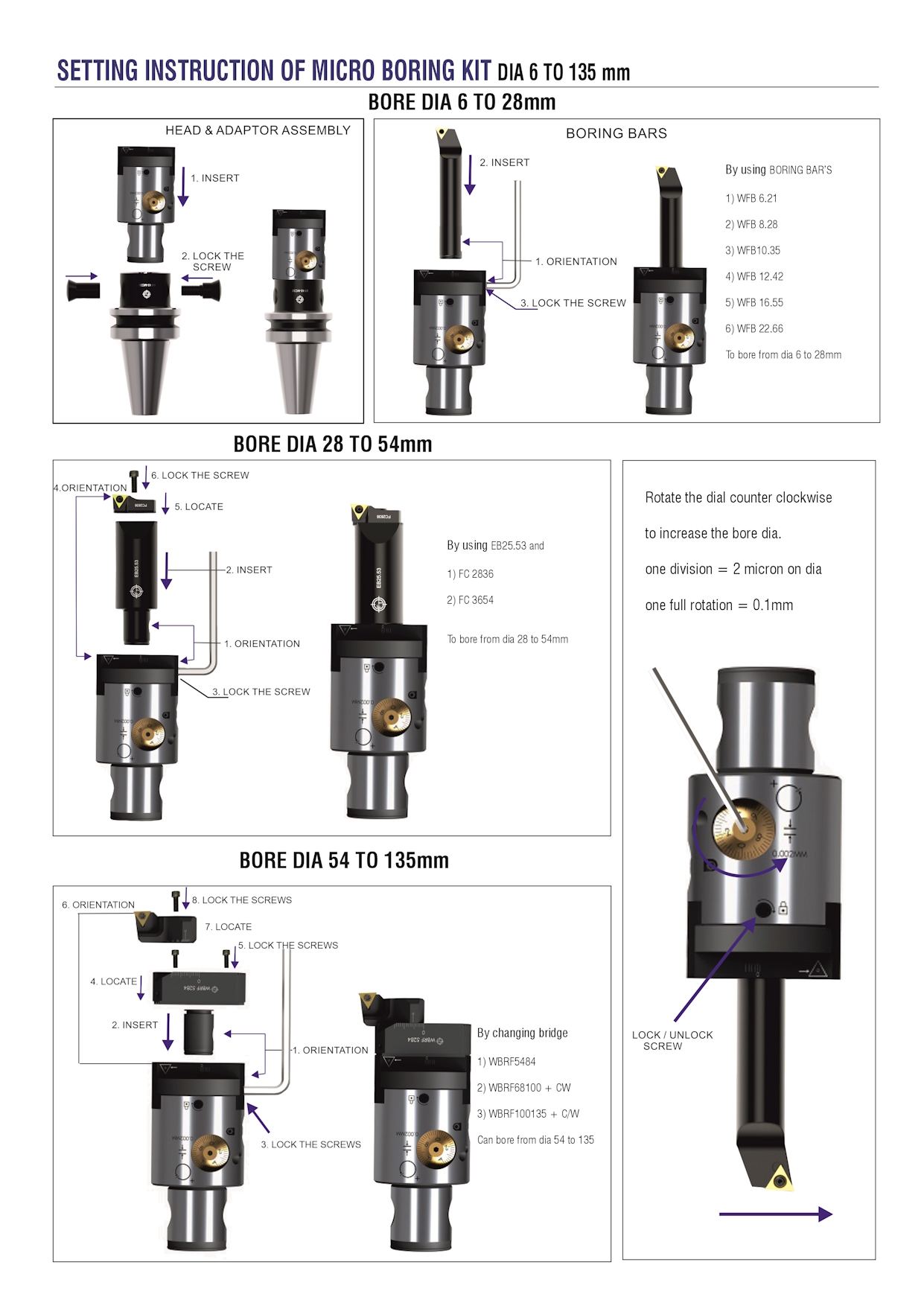

Micro Boring Kit Usage

BORING BARS

STEEL 6-28 mm

ITEM	CODE	DIA RANGE	L	INSERT	INSERT SCREW	TORX KEY
WFB6.21	WFB006021	6-8	21	WC02	TS211	T6
WFB8.28	WFB008028	8-10	28	WC02	TS21	T6
WFB10.35	WFB010035	10-14	35	TP09	CS2501	T8
WFB12.42	WFB012042	12-16	42	TP09	CS250	T8
WFB16.55	WFB016055	16-22	55	TP09	CS250	T8
WFB22.66	WFB022066	22-28	66	TP09	CS250	T8

CARBIDE BORING BAR 6-16mm

ITEM	CODE	DIA RANGE	L	INSERT	INSERT SCREW	TORX KEY	Kg
WFB6.40	FBS006040	6-8	40	WC02	TS211	T6	0.05
WFB8.50	FBS008050	8-10	50	WC02	TS21	T6	0.07
WFB10.60	FBS010060	10-14	60	TP09	CS2501	T8	0.1
WFB12.80	FBS012080	12- 16	80	TP09	CS250	T8	0.14

NOTE : THROUGH COOLANT IS OPTIONAL FOR ALL BORING BARS

CARBIDE BORING BAR & CARTRIDE 16-28 mm

REF	ITEM	CODE	DIA RANGE	L	INSERT	SCREW	TORX KEY
SHANK	CBS16.100	CBS16100		100		SPM412	T15
CARTRIDGE	CFC1620	CFC016020	16-20	100	TP09	CS250	T8
CARTRIDGE	CFC2024	CFC020024	20-24	100	TP09	CS250	T8
CARTRIDGE	CFC2428	CFC024028	24-28	100	TP09	CS250	T8

BORING BAR DIA 28 - 54 mm

REF	ITEM	CODE	DIA RANGE	L	INSERT	SCREW	TORX KEY
SHANK	EB25.53	EB025053	28-36	62
CARTRIDGE	FC2836	FC028036	28-36	62	TP09	CS250	T8
CARTRIDGE	FCC2836	FCC28036	28-36	62	CC06	TS25	T8
SHANK	EB25.73	EB025073	28-36	82
CARTRIDGE	FC2836	FC028036	28-36	82	TP09	CS250	T8
CARTRIDGE	FCC2836	FCC28036	28-36	82	CC06	TS25	T8

REF	ITEM	CODE	DIA RANGE	L	INSERT	SCREW	TORX KEY
SHANK	EB25.53	EB025053	36-54	64
CARTRIDGE	FC3654	FC036054	36-54	64	TP09	CS250	T8
CARTRIDGE	FCC3654	FCC36054	36-54	64	CC06	TS25	T8
SHANK	EB25.73	EB025073	36-54	84
CARTRIDGE	FC3654	FC036054	36-54	84	TP09	CS250	T8
CARTRIDGE	FCC3654	FCC36054	36-54	84	CC06	TS25	T8

NOTE : THROUGH COOLANT IS OPTIONAL FOR ALL BORING BARS

DIA 54 TO 135

REF	ITEM	CODE	DIA RANGE	L	Kg
BRIDGE	WBRF5484	WBRF005484	54-84	96+La	0.16
BRIDGE	WBRF68100	WBRF068100	68-100	96+La	0.18
BRIDGE	WBRF100135	WBRF100135	100-135	96+La	0.29

CARTRIDGE

ITEM	CODE	DIA RANGE	L2	INSERT	INSERT S CREW	TORX KEY	Kg
WFC03	WFC03T090	54-135	16	TP--11	CS25T11	T8	0.06
WFCC03	WFCC3T090	54-135	16	CC--09	TS 4	T15	0.06
WC/W	WCW00060						0.06

Note La is the extended length in the Adaptor
NOTE : THROUGH COOLANT IS OPTIONAL FOR ABOVE ALL

ADAPTOR

MC-32

The complete design of boring tools are built on modular concept. This helps in easy interchanging of tools The parts to be coupled are inserted and fastened by a specially designed taper bolt. The bolt creates a axial thrust on face and to give a rigid clamping of tool. The diameter & face are accurately ground to give a perfect seating and better concentricity.

The MODULAR adaptors are available in different tapers (BT, BBT, SK, HSK)
It can be tailor made for extend length to increase the GPL.

REF	ITEM	CODE	GPL	La	LOCK BOLT	Kg
BT40	BT40MC32	BT40MC3260	60	30	MC32 M10X50	1. 2
BT50	BT50MC32	BT50MC3210	100	60	MC32 M10X50	4.3
HSK A50	HSK A50MC32	HSK50MC328	80	50	MC32 M10X50	1
HSK A63	HSK A63MC32	HSK63MC328	80	50	MC32 M10X50	1.2
HSK A100	HSK A100MC32	HSK100MC32	100	70	MC32 M10X50	3

MODULAR EXTENSION

ITEM	CODE	L	Kg
MEA5050	MEA005050	50	0.7
MEA5075	MEA005075	75	1.2

MBKT Kit
